Wound Protectors/Retractors
CE Certificate: Yes
Intended Use: The product can be used for fixing and protecting incision/wound during surgery.
Structure and Composition:

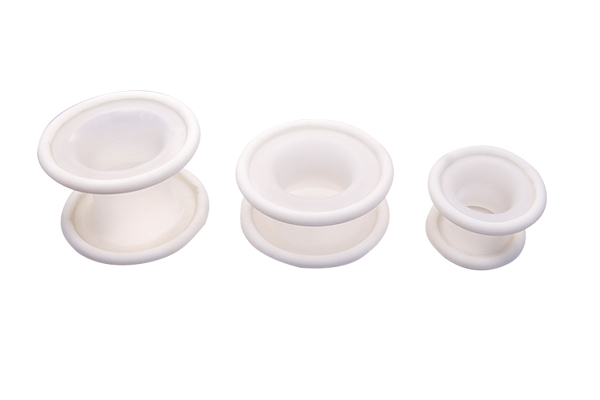

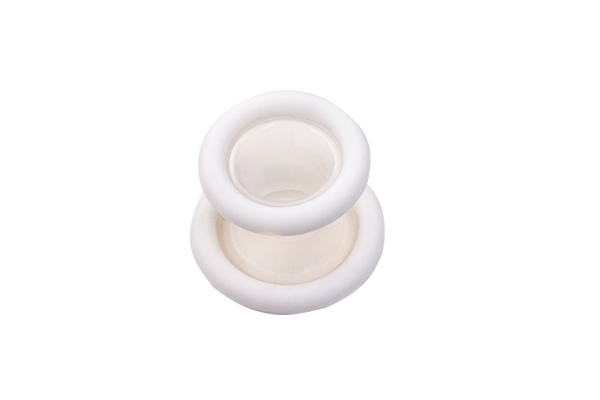

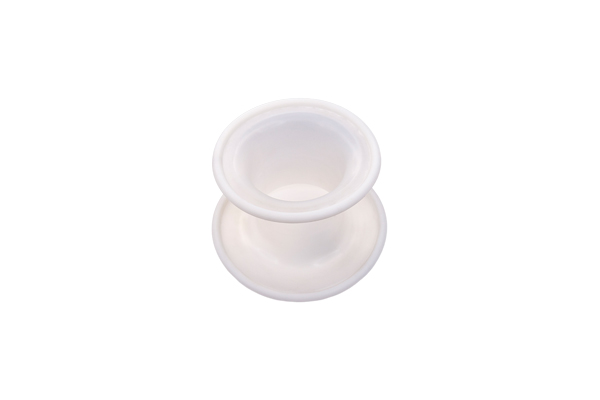

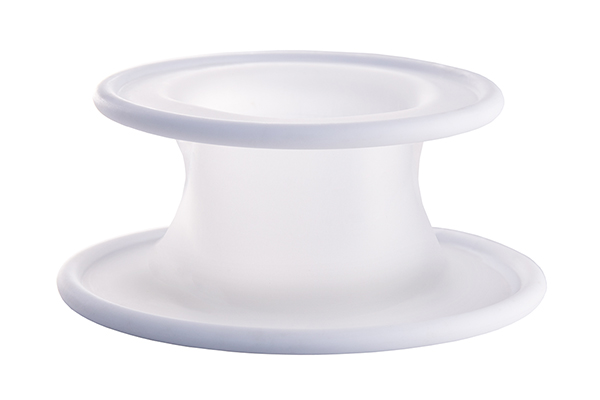

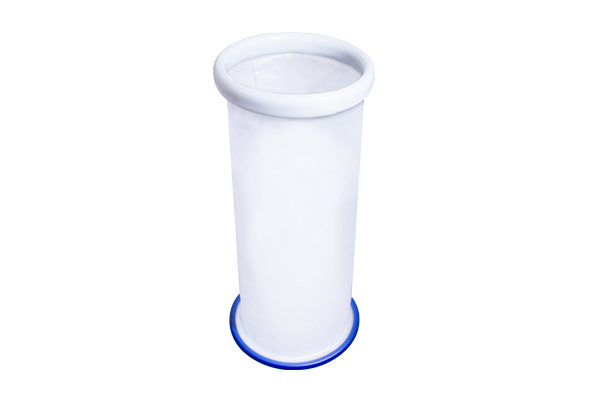

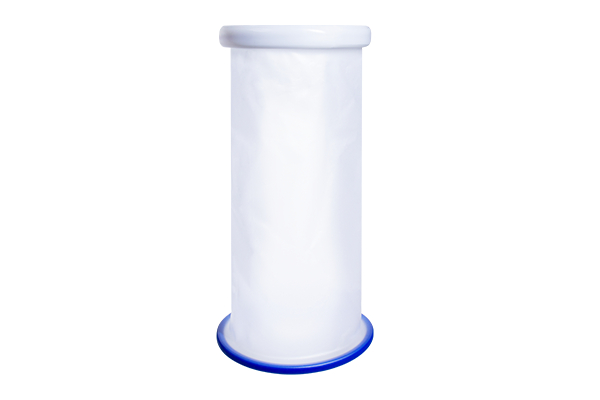

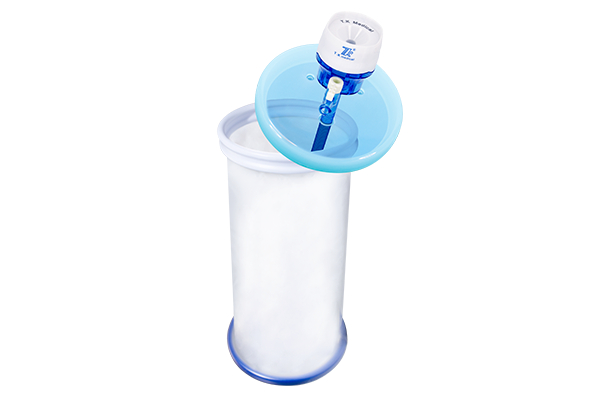

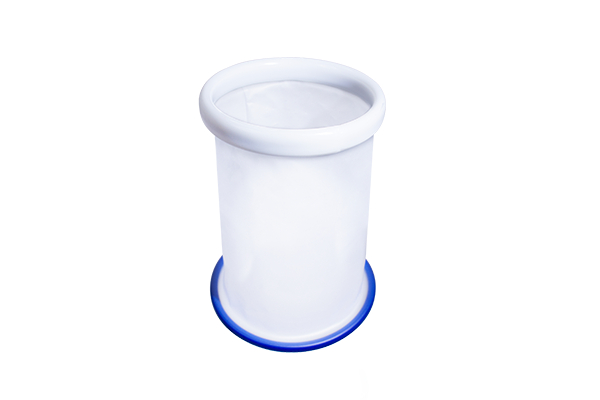

Model C: Consists of protecting film and memory ring.
1. 360° incision retraction
Maximally retracts the incision to expand the surgical field.Provides even tension distribution, reducing tissue damage and effectively preventing capillary bleeding at the incision margin.Avoids postoperative wound pain and ecchymosis caused by pressure from metal retractors.
2. 360° incision protection
Prevents incision infection, maintains wound moisture, and protects the incision margin from accidental instrument damage.
3. Simple and convenient operation
Model
Specification
Diameter（mm）
Incision Size（mm）

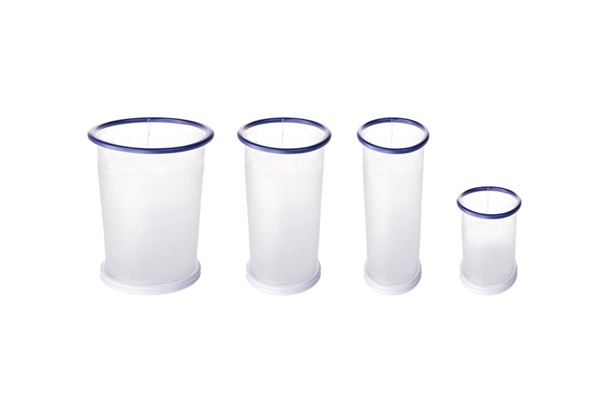

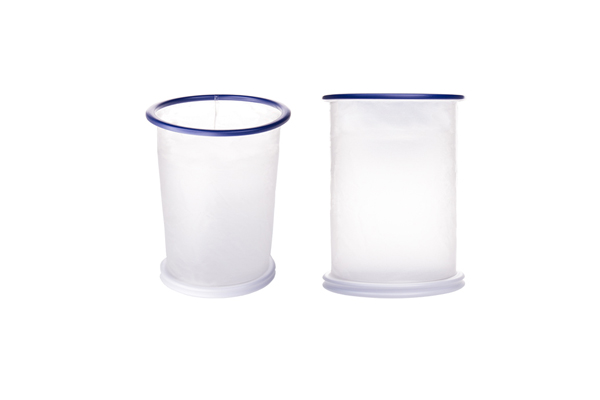

Model B

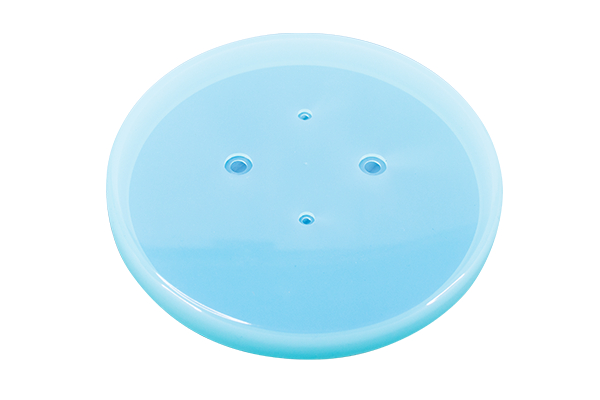

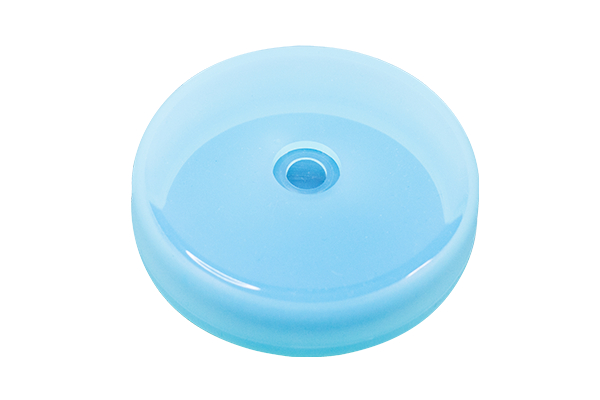

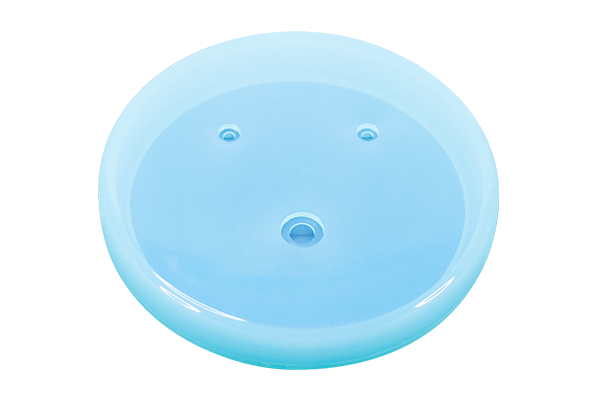

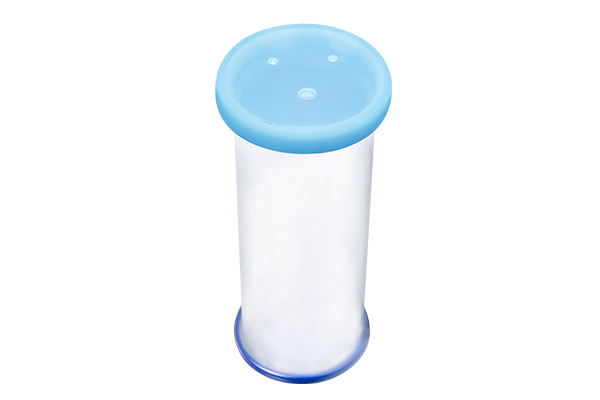

（with Cap，no Cap）
WP-40B
40
10-30
WP-60B
60
20-40
WP-90B
90
25-60
WP-120B
120
50-90
WP-150B
150
90-140
WP-180B
180
110-170
WP-200B
200
120-180
WP-230B
230
130-200
WP-250B
250
170-250
WP-280B
280
180-260
WP-330B
330
250-320
WP-150DB
150
90-140
WP-180DB
180
110-170
WP-250DB
250
170-250
WP-280DB
280
180-260
WP-330DB
330
250-320
WP-40LB
40
10-30
WP-60LB
60
20-40
WP-150LB
150
90-140
WP-180LB
180
110-170
|
Model |
Specification |
Access Diameter（mm） |
Memory Ring 1 Diameter（mm） |
Memory Ring 2 Diameter（mm） |
Height（mm） |
Inicision Size（mm） |
|
Model C |
WP-15C |
15 |
30 |
36 |
20 |
10-20 |
|
WP-25C |
25 |
45 |
50 |
25 |
20-30 |
|
|
WP-35C |
35 |
70 |
70 |
25 |
30-40 |
|
|
WP-60C |
60 |
100 |
120 |
25 |
55-65 |
|
|
WP-60TC |
60 |
120 |
120 |
25 |
55-65 |
|
|
WP-25SC |
25 |
50 |
60 |
5 |
20-30 |
|
|
WP-35SC |
35 |
60 |
70 |
5 |
30-40 |
|
|
WP-35LC |
35 |
70 |
70 |
40 |
30-40 |
|
|
WP-60LC |
60 |
100 |
120 |
40 |
55-65 |
|
|
WP-60LTC |
60 |
120 |
120 |
40 |
55-65 |
|
|
WP-60XLC |
60 |
100 |
120 |
70 |
55-65 |
